Are you tired of your electronic devices not functioning properly due to dim, flickering displays? Well, the problem may lie in the alignment of the light guide film with the dome array. This crucial element ensures that light is evenly distributed throughout your device’s screen and can significantly impact its overall performance. In this post, we’ll explore why proper alignment is essential for a high-quality display and how to achieve it effectively. So buckle up and get ready to brighten up your electronics!
What is Light Guide Film and Dome Array?
Light guide film is a clear plastic film that helps to distribute light evenly across the surface of a dome array. The dome array is a series of small, reflective domes that are mounted on a board. When light shines on the light guide film, it is bounce off of the domes and into the room. This creates an even, diffuse light that is perfect for task lighting or ambient lighting.
If the light guide film is not properly aligned with the dome array, the light will not be evenly distributed and will create hotspots or dark areas. This can be frustrating and cause eyestrain. It is important to take the time to align the light guide film correctly so that you can enjoy proper lighting in your home or office.

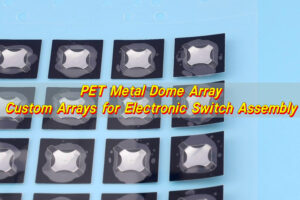

(Light_guide_film_with_dome_array)
Step-by-Step Instructions on How to Align Light Guide Film with Dome Array
Assuming you have your light guide film (LGF) and dome array (DA) in front of you, here are the step-by-step instructions on how to properly align the two:
1. Place the LGF on top of the DA so that the notches on both pieces are lined up.
2. Make sure that the two pieces are flush with each other and that there is no gap between them.
3. Once you have confirmed that the LGF is properly positioned on top of the DA, use a piece of tape to secure them together.
4. Trim off any excess LGF that may be sticking out from around the edges of the DA.
5. Your LGF should now be properly aligned with your DA!
Tips for Optimizing the Process
1. Make sure the light guide film is properly aligned with the dome array.
2. Use a spacer between the light guide film and the dome array to ensure proper alignment.
3. Use double-sided tape to secure the light guide film in place.
4. Make sure the edges of the light guide film are flush with the edges of the dome array.
5. Trim any excess light guide film from around the perimeter of the dome array.
It is critical to ensure that the light guide film is properly aligned with the dome array in order to achieve optimal light extraction and uniformity. If the light guide film is misaligned, it can result in non-uniform light output, decreased brightness, and/or reduced efficiency. There are several methods that can be used to align the light guide film, such as using a jig or template, laser alignment, or optical alignment. Each of these methods has its own advantages and disadvantages, so it is important to choose the method that best suits your needs and application.
In conclusion, properly aligning light guide film with dome array is an important step in the process of creating a successful lighting design. Without proper alignment, it can be difficult to achieve the desired result and may lead to uneven illumination or decreased performance levels. By taking the time to ensure that your light guide film is properly aligned with your dome array, you will be able to create better-looking lighting designs while also ensuring maximum efficiency.
What Best Technology can do?
As a leading of LGF dome array One-stop service supplier in China, we have strong R&D team, professional sales and rich manufacturing experience in LGF series products. By means of our mature fabricating process, we can make and assemble the LGF together with dome array fast and efficiency. In the meanwhile, Best Tech can save much components cost for you, for example: on the motherboard of mobile phone, through the optical refraction, only 1~4 pcs LED will be enough for soft and high light luminance, if using our LGF dome array (mobile phone LGF). At the same time, we can adjust luminance of the black area during the design to achieve the value to 30CD/M2. So why not choose Best Tech as your long-establish LGF and Metal dome & dome array supplier in Asia?
